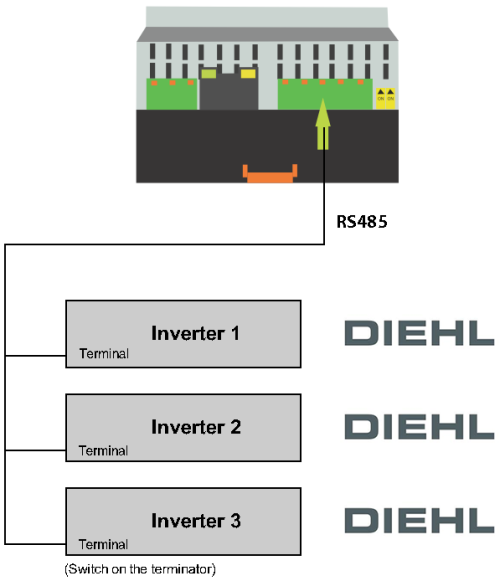

Connection Diagram
In case of the involvement of multiple inverters, connect the inverters each other this way:
| Inverter 1 | Inverter 2 |
|---|---|
| A | A |
| B | B |
| Shield | Shield |
Configuration Notes
